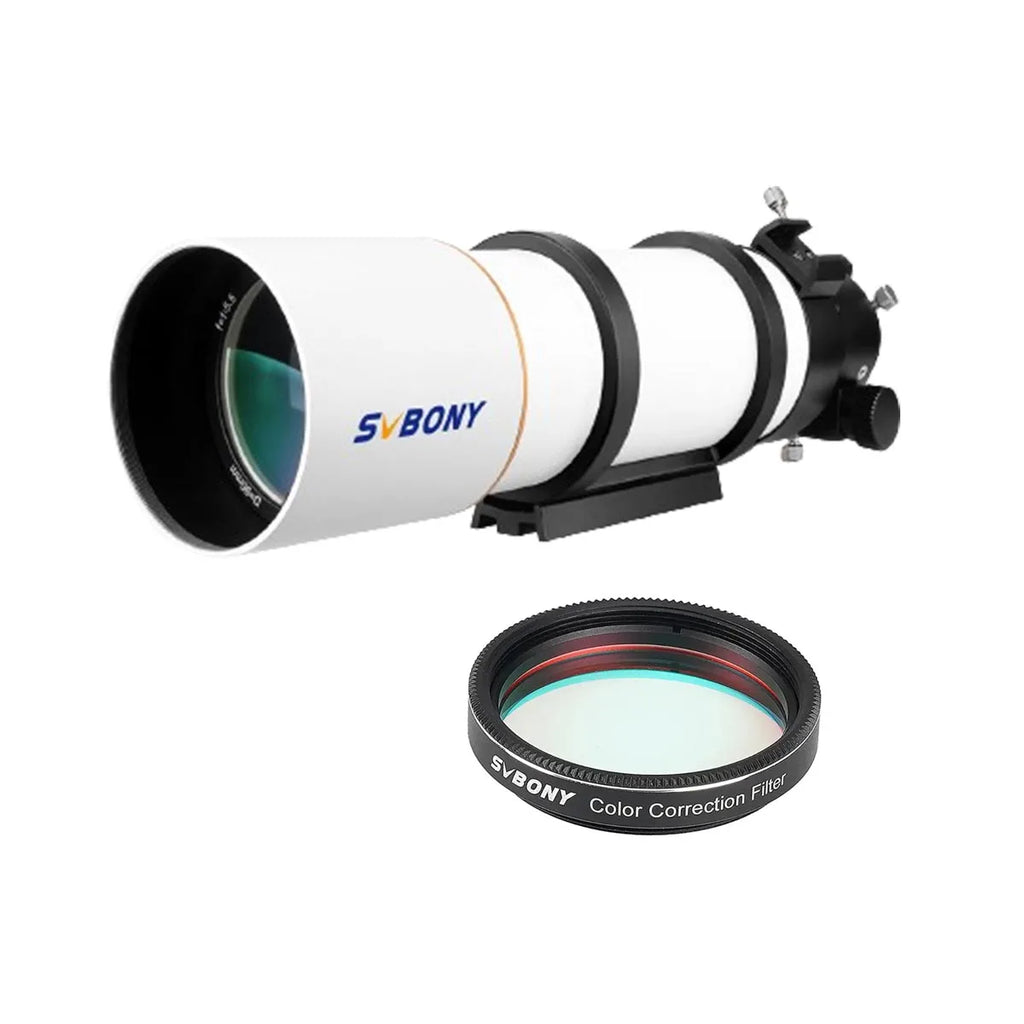

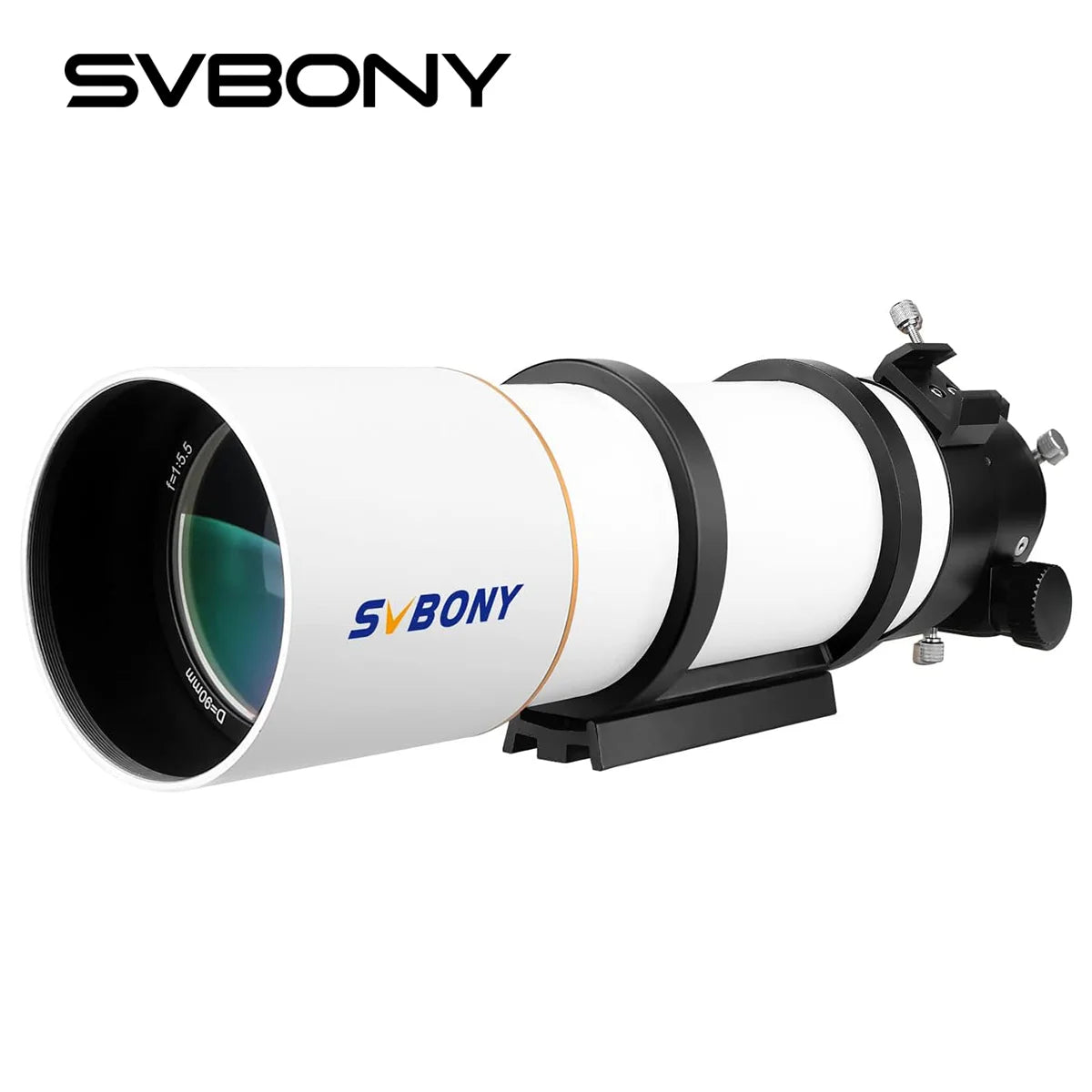

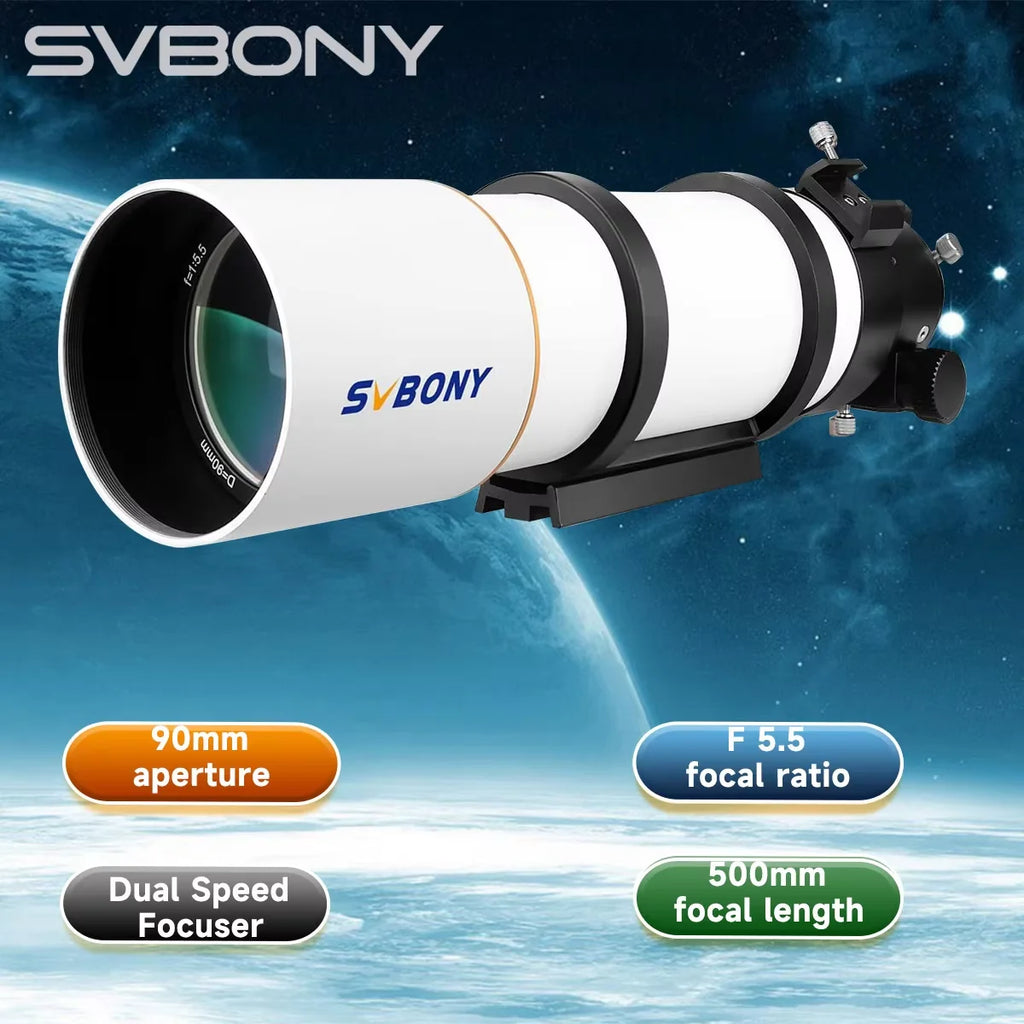

The SVBONY SV48P is a 90mm f/5.5 refractor telescope OTA designed for astronomy enthusiasts and astrophotographers seeking clear, bright and wide-field views. With a 90mm aperture and 500mm focal length, it captures more light than smaller refractors, delivering sharp lunar, planetary and deep-sky observations.

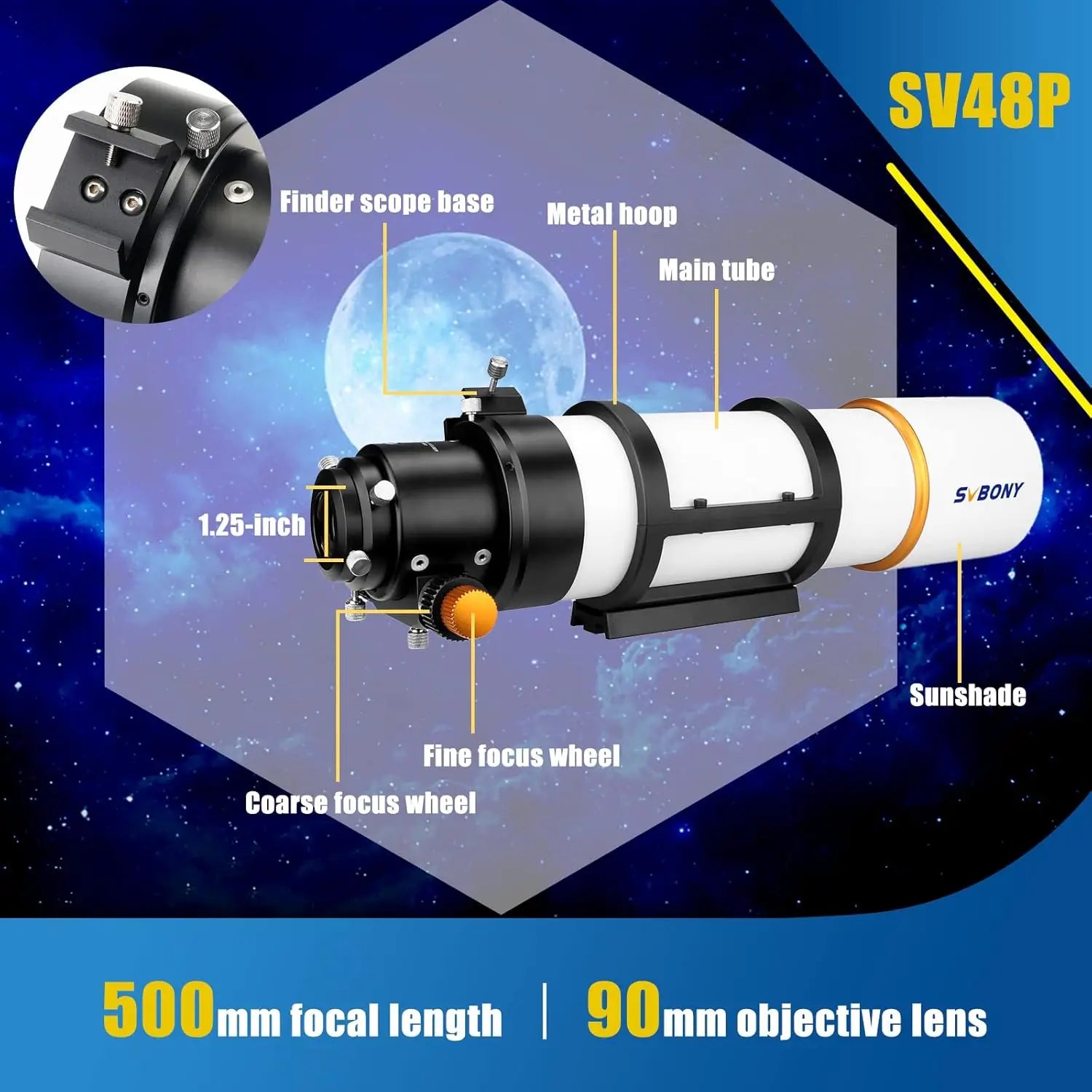

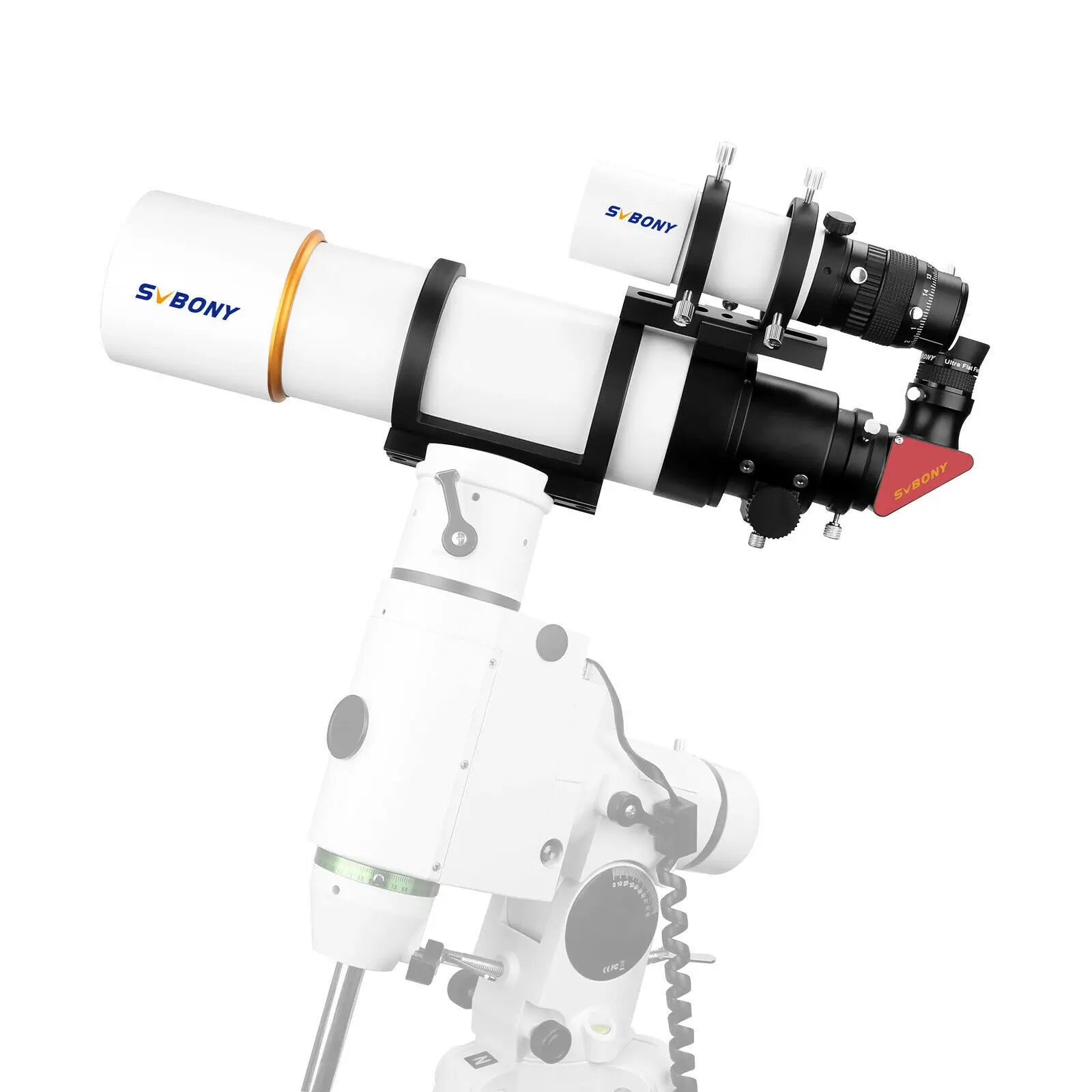

Its doublet achromatic objective lens with fully multi-coated optics reduces false colour while enhancing contrast and brightness. The dual-speed 2-inch rack-and-pinion focuser, complete with a 360° rotator, provides smooth and precise focusing, essential for astrophotography. Built with a durable metal tube and supplied with a dovetail plate and tube rings, it is compatible with most telescope mounts.
SPECIFICATIONS
-
Brand Name: SVBONY
-
Model Number: SV48P
-
Optical Design: Refractor (doublet air-spaced achromatic)
-
Aperture: 90 mm
-
Focal Length: 500 mm
-
Focal Ratio: f/5.5
-
Resolving Capacity: 1.71″
-

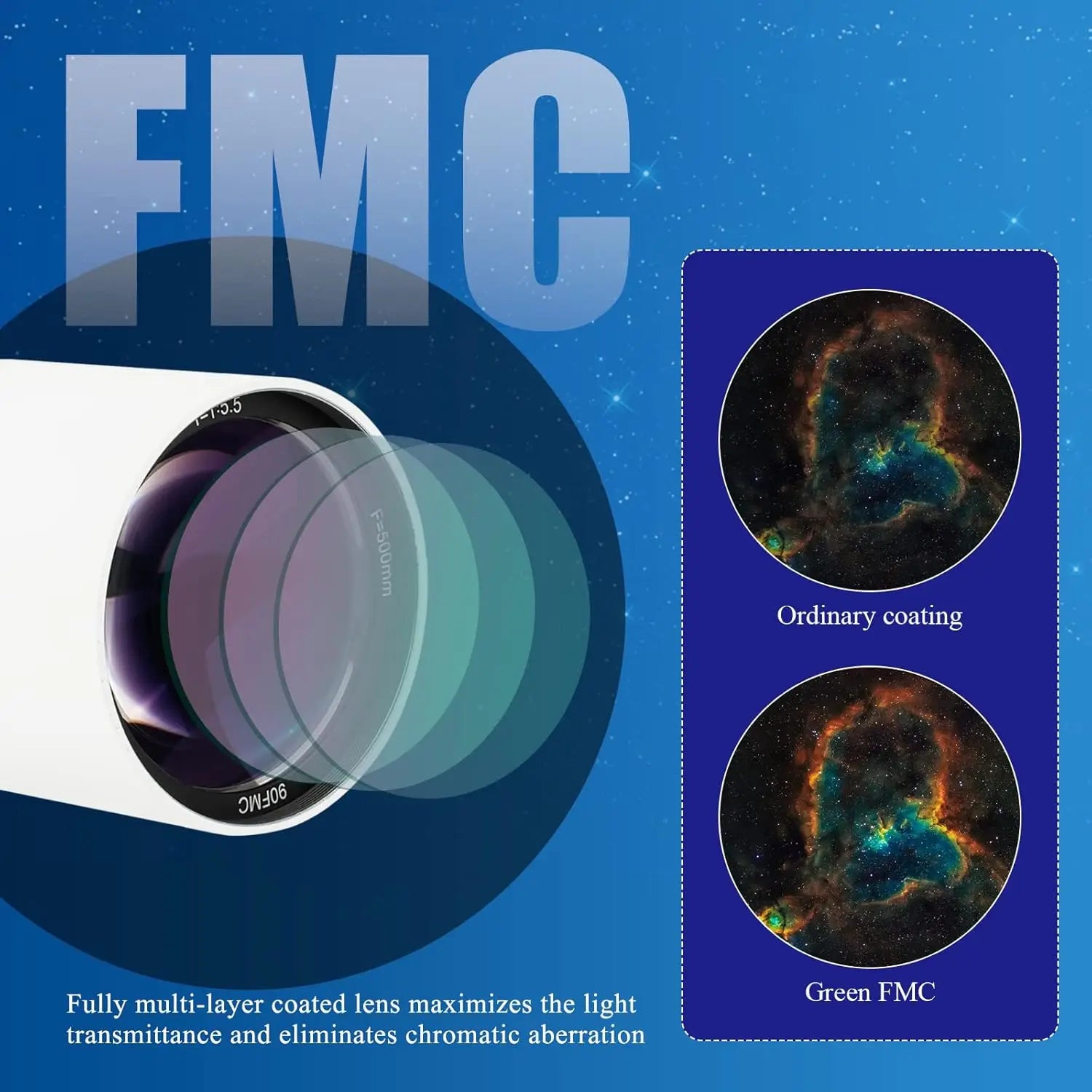

Coating: Fully multi-coated (FMC)
-
Objective Lens: Achromatic glass for edge-to-edge clarity
-
Focuser: 2-inch RAP dual-speed focuser with 1:10 fine adjustment
-

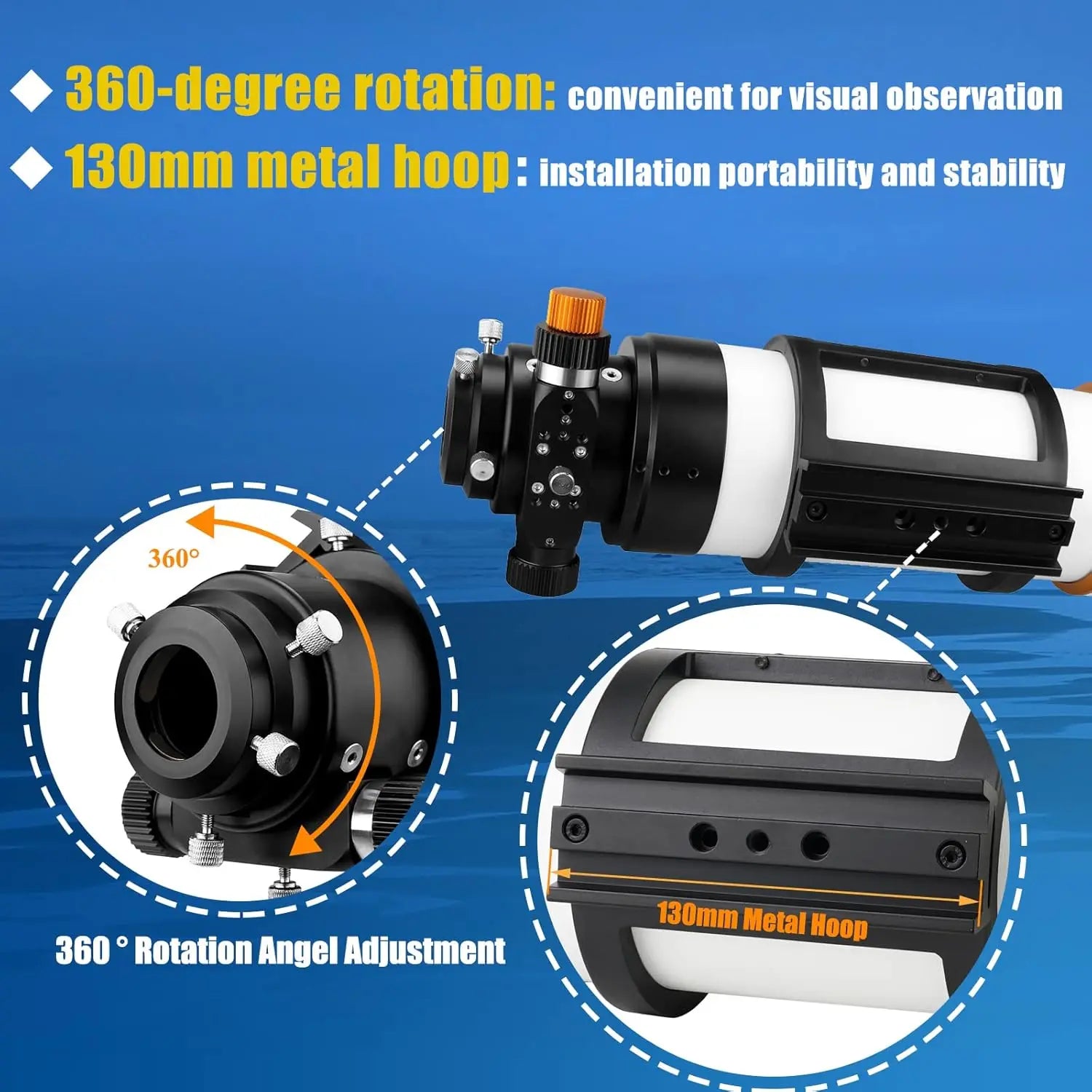

Rotation: 360° rotatable focuser
-
Eyepiece Compatibility: 2-inch barrel with 1.25-inch adapter
-

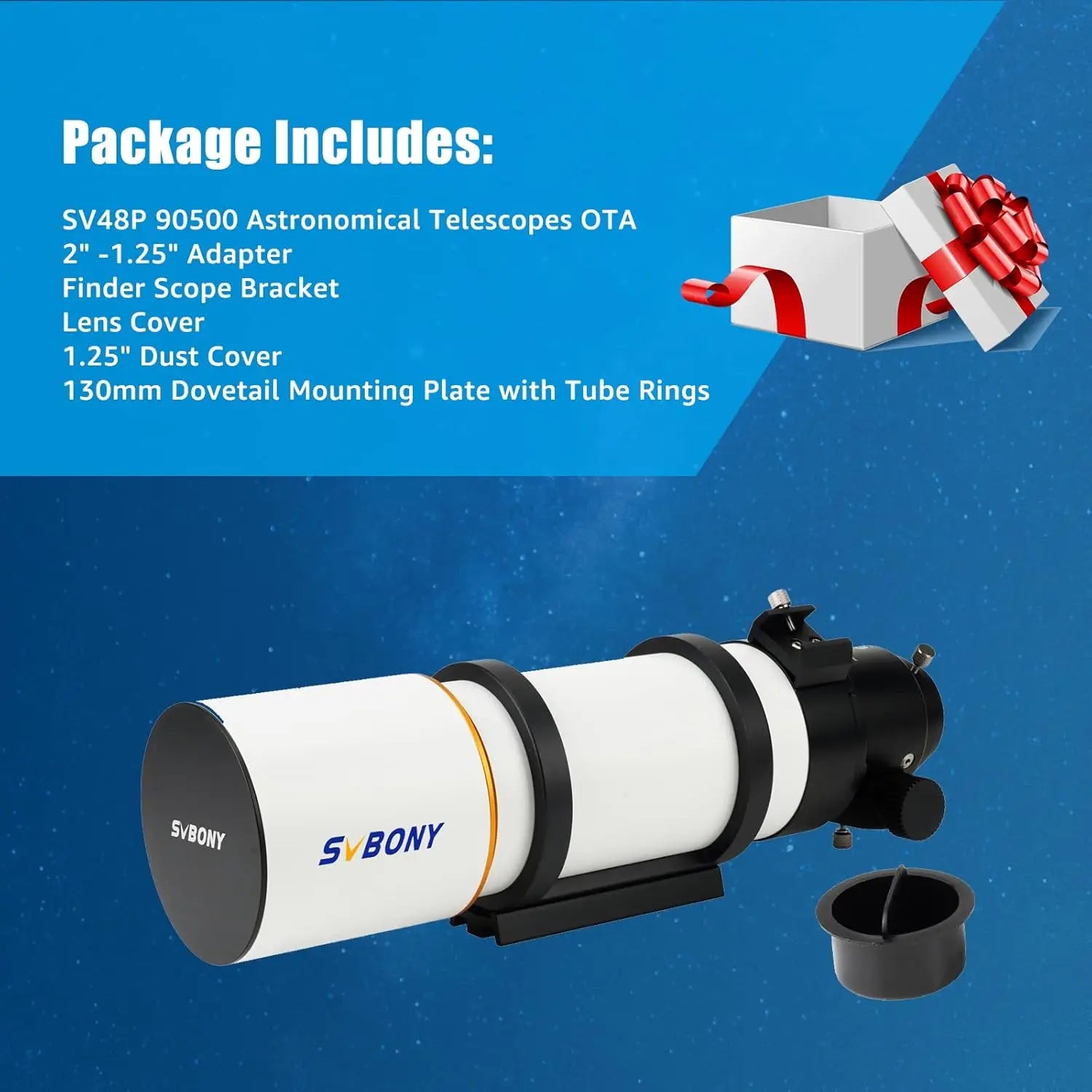

Dovetail Plate: 130 mm with tube rings
-
Dust Protection: 1.25-inch dust plug included
-
Finder Scope Bracket: Yes
-
Mount Type: Vixen-style dovetail plate
-
Body Material: Metal
-
Net Weight: 2730 g (96.3 oz / 6 lb)
-
Water Resistance Level: IPX4
-
Origin: Mainland China
-
Hign-concerned Chemical: None
Portable yet powerful, the SVBONY SV48P offers bright, sharp optics and smooth focusing control, making it an excellent telescope for both beginners and experienced observers exploring deep-sky astrophotography and visual astronomy.
